Category： Polishing-edgeNumber： 1040000041
Specification：不限
Type：四輥 Product Price： 面議 |
Characteristics:

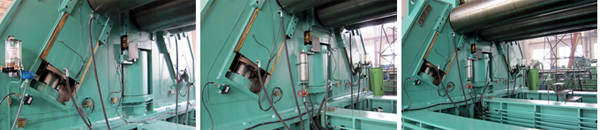

HLW12NC series four roll polishing-edge mainly on roller drive, bottom rollers is rising and falling, side roller tilt of the movement and overturned frame for hydraulic drive overturned, computer control. Suitable for coiling circle, elliptic, more paragraphs R and different shapes.
Technical parameters:
|
Model |
Max.rolling
thickness
(mm) |
Max.pre-rolling
thickness
(mm) |
Plate width
(mm) |
Diameter of
upper roller
(mm) |
Main motor power
(kw) |
|
HLW12NC-25x2000 |
25 |
20 |
2000 |
350 |
22 |
|
HLW12NC-25x2500 |
25 |
20 |
2500 |
400 |
37 |
|
HLW12NC-30x2000 |
30 |
25 |
2000 |
300 |
37 |
|
HLW12NC-30x2500 |
30 |
25 |
2500 |
400 |
37 |
|
HLW12NC-30x3000 |
30 |
25 |
3000 |
470 |
45 |
|
HLW12NC-40x3000 |
40 |
32 |
3000 |
550 |
55 |
|
HLW12NC-50x3000 |
50 |
40 |
3000 |
610 |
55 |
|
HLW12NC-60x3000 |
60 |
50 |
3000 |
670 |
75 |
|
HLW12NC-70x3000 |
70 |
60 |
3000 |
730 |
75 |
|
HLW12NC-80x3000 |
80 |
65 |
3000 |
780 |
90 |
|
HLW12NC-90x3000 |
90 |
75 |
3000 |
820 |
90 |
|
HLW12NC-100x3000 |
100 |
80 |
3000 |
880 |
110 |
Added：2011-04-13 Views：1079
